Wear Resistant 710rpm Froth Submersible Sludge Pump 80Q-PM
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Submersible Sludge Pump
Standard Or Nonstandard: Standard
Warranty: 12 Months
Feature: Wear Resistant
Application: Sewage
Pressure: High Pressure
High Light:

710rpm submersible sludge pump

,

wear resistant submersible sludge pump

,

710rpm froth pump

Basic Infomation
Place of Origin: China
Brand Name: TM
Model Number: 80Q-PM
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 300 sets per month
Product Description

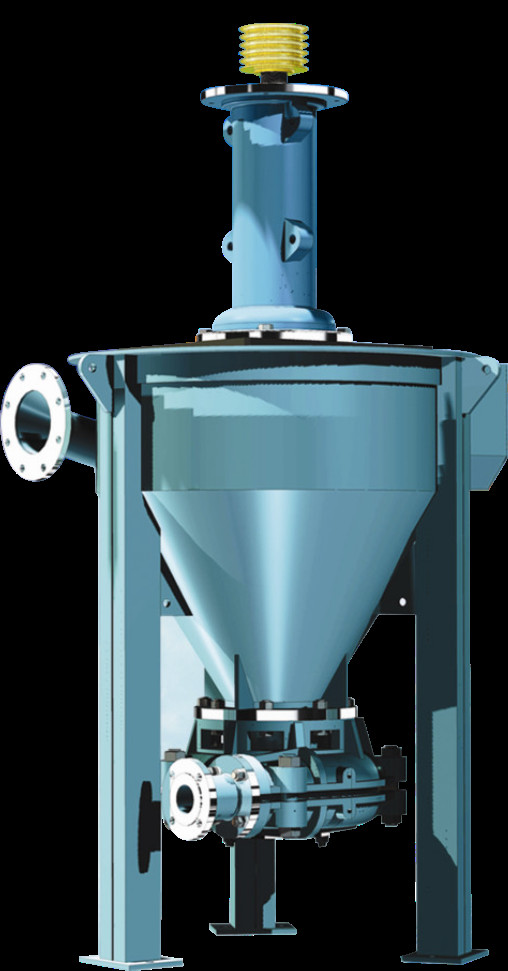

80Q-PM Froth Pump



PM Series vertical froth pump is widely used in metallurgy,mining,coal,chemical industry field.suitable for conveying abrasive or corrosive slurry containing foam.The foam in the slurry can be effectively eliminated. When the incoming material is insufficient, it sill can work normally. Especially suitable for all kinds flotation process flow. It is an ideal product for conveying foam slurry.





                                            Performance Parameters of PM Pump



Type

Speed

n

r/min

Capacity

Q

m3/h

Head

H

m

Eff

n

%

Shaft Power Pa

kw

Driven Type Motor Type
Type Power kw Voltage V







                                                                                       80Q-PM



1480 60.0 29.9 46.2 10.58 DC

Y180M-4

Y180L-4

18.5

22

380
100.0 27.0 52.5 14.01
120.0 24.7 52.0 15.53
1400 56.8 26.8 45.9 9.01 BD

Y160L-4

Y180M-4

Y180L-4

15

18.5

22

94.6 24.2 52.2 11.94
113.5 22.1 51.7 13.23
1300 52.7 23.1 45.5 7.28 BD

Y160L-4

Y180M-4

15

18.5

87.8 20.8 51.7 9.64
105.4 19.1 51.2 10.69
1200 48.6 19.7 45.1 5.78 BD

Y160M-4

Y160L-4

11

15

81.1 17.8 51.2 7.66
97.3 16.2 50.7 8.49
1100 44.6 16.5 44.6 4.50 BD

Y132M-4

Y160M-4

7.5

11

74.3 14.9 50.7 5.96
89.2 13.6 50.2 6.61
1000 40.5 13.7 44.1 3.42 BD

Y132S-4

Y132M-4

5.5

7.5

67.6 12.3 50.1 4.53
81.1 11.3 49.6 5.02
970 39.3 12.8 43.9 3.13 DC

Y132M2-6

Y160M-6

5.5

7.5

65.5 11.6 49.9 4.15
78.6 10.6 49.4 4.60
900 36.5 11.1 43.5 2.53 BD Y132M-6

4

5.5

60.8 10.0 49.4 3.35
73.0 9.1 48.9 3.71
850 34.5 9.9 43.2 2.14 BD Y132M-6

4

5.5

57.4 8.9 49.1 2.84
68.9 8.1 48.6 3.15
800 32.4 8.7 42.8 1.80 BD

Y132S-6

Y132M1-6

3

4

54.1 7.9 48.7 2.39
64.9 7.2 48.2 2.64
750 30.4 7.7 42.5 1.50 BD

Y132S-6

Y132M1-6

3

4

50.7 6.9 48.3 1.98
60.8 6.3 47.8 2.20
710 28.8 6.9 42.2 1.28 DC

Y132S-8

Y132M-8

2.2

3

48.0 6.2 47.9 1.69
57.6 5.7 47.5 1.88







PM series froth pump has the characters of simple structure ,easy installation and high degree generalization.

  • Transmission parts: it is universal with LP, LPR series pump. According to the need of customers. Direct transmission or belt one can be choose.
  • The material box adopts steel structure, with tangential inlet and overflow box will return the excess material to the material pool.Tangential inlet allows the slurry into the pump quickly, which can eliminate some of the foam.
  • Pump head:it is the same as that of ZBD,ZBB series slurry pump, with double pump shell structure.Pump body, cover,front guard plate etc are universal with ZBD,ZBB series of the same diameter slag slurry pump.According to the different conveying medium, the material of the flow part can choose metal,rubber or other non-metallic materials. For metal material, the pump body, cover,sheath and front guard plate etc are the same with ZBD and ZBB series pump of the same diameter slag slurry pump; for rubber or other non-metallic materials, the front sheath and back sheath are the same with ZBD,R series pump of the same diameter slag slurry pump.
