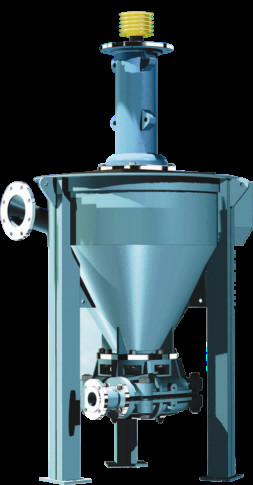

50Q-PM Froth Pump
PM Series vertical froth pump is widely used in metallurgy,mining,coal,chemical industry field.suitable for conveying abrasive or corrosive slurry containing foam.The foam in the slurry can be effectively eliminated. When the incoming material is insufficient, it sill can work normally. Especially suitable for all kinds flotation process flow. It is an ideal product for conveying foam slurry.
PM series froth pump has the characters of simple structure ,easy installation and high degree generalization.
Performance Parameters of PM Pump
|
|
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff n % |
Shaft Power Pa kw |
Driven Type | Motor Type | ||
| Type | Power kw | Voltage V | |||||||
| 50Q-PM | 1300 | 19.0 | 21.9 | 34.1 | 3.32 | BD |
Y132S-4 Y132M-4 |
5.5 7.5 |
380 |
| 31.6 | 20.8 | 43.1 | 4.16 | ||||||
| 37.9 | 19.8 | 44.6 | 4.58 | ||||||
| 1200 | 17.5 | 18.7 | 33.7 | 2.64 | BD | Y132S-4 | 5.5 | ||
| 29.2 | 17.8 | 42.6 | 3.31 | ||||||
| 35.0 | 16.8 | 44.0 | 3.65 | ||||||
| 1100 | 16.1 | 15.7 | 33.2 | 2.07 | BD |
Y112M-4 Y132S-4 |
4 5.5 |
||
| 26.8 | 14.9 | 42.0 | 2.59 | ||||||
| 32.1 | 14.1 | 43.4 | 2.85 | ||||||
| 1000 | 14.6 | 13.0 | 32.7 | 1.58 | BD |
Y100L2-4 Y112M-4 |
3 4 |
||
| 24.3 | 12.3 | 41.3 | 1.98 | ||||||
| 29.2 | 11.7 | 42.8 | 2.17 | ||||||
| 970 | 14.2 | 12.2 | 32.5 | 1.45 | BD |
Y112M-6 Y132S-6 |
2.2 3 |
||
| 23.6 | 11.6 | 41.1 | 1.81 | ||||||
| 28.3 | 11.0 | 42.5 | 1.99 | ||||||
| 900 | 13.1 | 10.5 | 32.1 | 1.17 | BD |
Y112M-6 Y132S-6 |
2.2 3 |
||
| 21.9 | 10.0 | 40.6 | 1.47 | ||||||
| 26.3 | 9.5 | 42.0 | 1.61 | ||||||
| 850 | 12.4 | 9.4 | 31.8 | 0.99 | BD |
Y100L-6 Y132S-6 |
1.5 2.2 |
||
| 20.7 | 8.9 | 40.2 | 1.25 | ||||||
| 24.8 | 8.4 | 41.6 | 1.37 | ||||||
| 800 | 11.7 | 8.3 | 31.5 | 0.84 | BD |
Y100L-6 Y132S-6 |
1.5 2.2 |
||
| 19.5 | 7.9 | 39.8 | 1.05 | ||||||
| 23.4 | 7.5 | 41.2 | 1.16 | ||||||
| 750 | 10.9 | 7.3 | 31.2 | 0.70 | BD |
Y90L-6 Y100L-6 |
1.1 1.5 |
||
| 18.2 | 6.9 | 39.4 | 0.87 | ||||||
| 21.9 | 6.6 | 40.7 | 0.96 | ||||||
| 700 | 10.2 | 6.4 | 30.8 | 0.57 | BD |
Y90L-6 Y100L-6 |
1.1 1.5 |
||
| 17.0 | 6.0 | 38.9 | 0.72 | ||||||
| 20.4 | 5.7 | 40.3 | 0.79 | ||||||
FAQ
A: Trial sample is ok.
A: We are a manufacturer.
A: Yes, we can do OEM for you.
A: Usually we suggest express for samples, if the volume reaches 1m3,the seaway will be better.
A: 1 year
