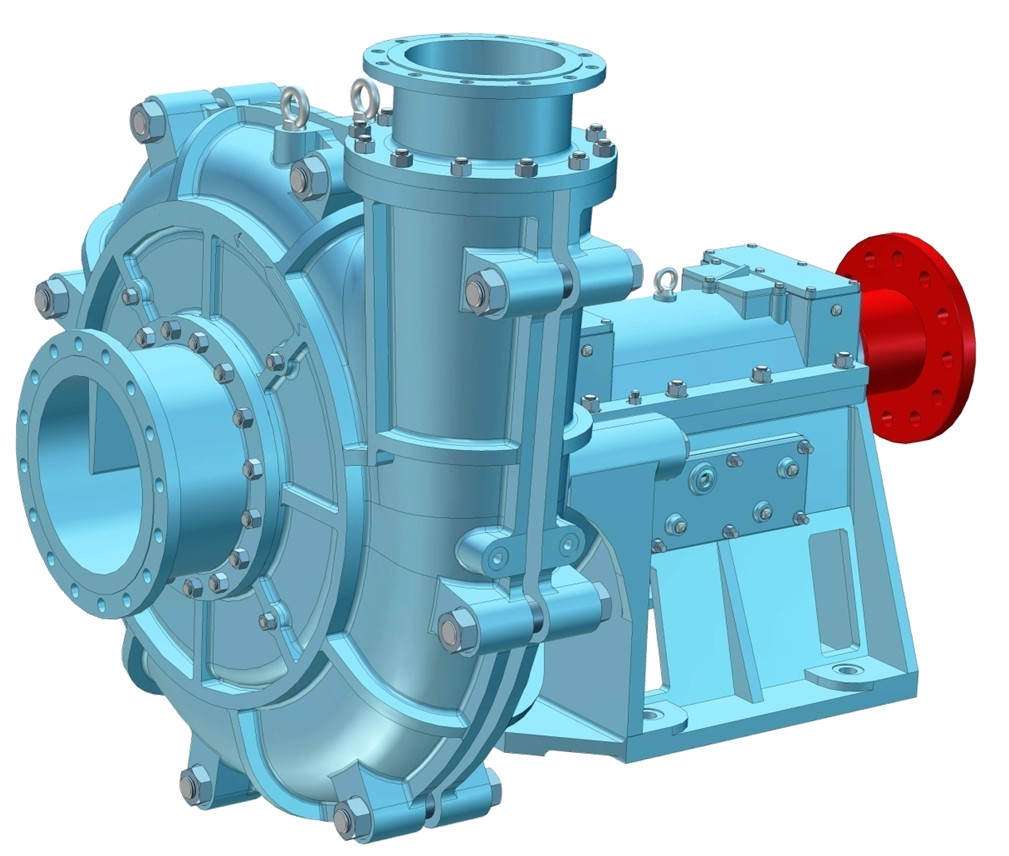

125ZBD-530 Slag Slurry Pump
|
Type |
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff. n % |
Matching Motor Power kw |
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff. n % |
Matching Motor Power kw |
| 228.0 | 44.3 | 59.7 | 172.2 | 25.3 | 58.0 | |||||
| 125ZBD-530 | 980 | 380.0 | 40.0 | 69.4 | 75 -110 | 740 | 286.9 | 22.8 | 67.4 | 37-45 |
| 456.0 | 36.4 | 69.0 | 344.3 | 20.8 | 67.0 | |||||
| 213.3 | 38.8 | 59.3 | 161.0 | 22.1 | 57.6 | |||||
| 125ZBD-530A | 980 | 355.5 | 35.0 | 68.9 | 75-90 | 740 | 268.4 | 20.0 | 66.9 | 30-37 |
| 426.5 | 31.9 | 68.5 | 322.1 | 18.2 | 66.6 | |||||
| 197.5 | 33.2 | 58.8 | 149.1 | 18.9 | 57.1 | |||||
| 125ZBD-530B | 980 | 329.1 | 30.0 | 68.4 | 55-75 | 740 | 248.5 | 17.1 | 66.4 | 22-30 |
| 394.9 | 27.3 | 68.0 | 298.2 | 15.6 | 66.0 |
