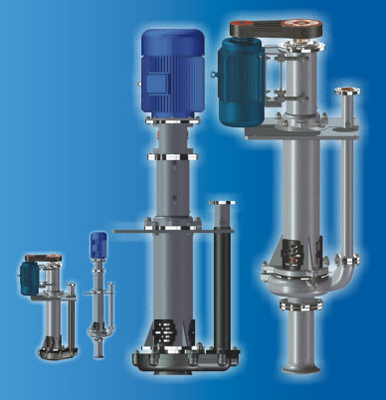

150S-LPR Liquid Slurry Pump
Product details
The pump body, impeller and guard plate of LP pump are made of wear-resistant materials, with sample structure and easy installation, pump body with bolts fixed in the branch of the rack, the upper end of the bracket is placed with the bearing body which is adopted double row tapered roller bearings, the driving end uses a single row cylindrical roller shift which can bear maximum load of pump, and can easily change pulley to fit the speed of the pump to meet different working conditions. With split mounting plate on the bracket, it can be conveniently fixed on the steel frame foundation or concrete one. The pump should be immersed in the slag slurry when it works, the pump body suction inlet with a filter which can prevent large particles.
The structure or LP and LPR are almost same except the LPR type are lined with corrosion resistant rubber for the parts immersed in the slag slurry, the rubber parts include shaft, pump body, impeller,guard plate and filter screen, the connecting bolts of the lower part of the immersion are protected by rubber sleeve.
LP(R) type pump is a centrifugal slurry pump, suitable for conveying abrasive or corrosive slurry.Pump generally invade the poor or pit work.The pump is divided into LP type and LPR type, with the same structure. The LP type flow parts and shaft are made of metal material,
Which is suitable for conveying abrasive slurry. LPR type flow parts are lined with abrasion-resistant rubber, suitable for conveying corrosive slag slurry. LPR type subsurface pump is widely used in metallurgy, mining, coal, electric power, building materials and other departments.
Performance parameter of LP pump
| Product | Rotate Spped n r/min |
Flow Q m3/h |
Lift H m |
Efficiency η % |
Shaft Power Pa kw |
Drive Type | Motor | Weight Kg |
|
| Model | Power kw |
||||||||
| 150S-LPR | 1000 | 223.2 | 34.3 | 45 | 46.34 | BD | Y280S-4 | 75 | 1700 |
| 392.4 | 30.5 | 54.5 | 59.82 | ||||||
| 568.8 | 24.6 | 53 | 71.92 | Y280M-4 | 90 | ||||
| 980 | 218.7 | 32.9 | 45 | 43.62 | DC | Y315S-6 | 75 | 1700 | |
| 384.6 | 29.3 | 54.5 | 56.30 | ||||||
| 557.4 | 23.6 | 53 | 67.69 | Y315M-6 | 90 | ||||
| 940 | 209.8 | 30.3 | 45 | 38.49 | BD | Y315S-6 | 75 | 1700 | |
| 368.9 | 26.9 | 54.5 | 49.68 | ||||||
| 534.7 | 21.7 | 53 | 59.73 | Y315M-6 | 90 | ||||
| 900 | 200.9 | 27.8 | 45 | 33.78 | BD | Y315S-6 | 75 | 1700 | |
| 353.2 | 24.7 | 54.5 | 43.61 | ||||||
| 511.9 | 19.9 | 53 | 52.43 | Y315M-6 | 90 | ||||
| 850 | 189.7 | 24.8 | 45 | 28.46 | BD | Y280M-6 | 55 | 1700 | |
| 333.5 | 22.0 | 54.5 | 36.74 | ||||||
| 483.5 | 17.8 | 53 | 44.17 | Y315S-6 | 75 | ||||
| 800 | 178.6 | 22.0 | 45 | 23.73 | BD | Y280S-6 | 45 | 1700 | |
| 313.9 | 19.5 | 54.5 | 30.63 | ||||||
| 455.0 | 15.7 | 53 | 36.82 | Y280M-6 | 55 | ||||
| 740 | 165.2 | 18.8 | 45 | 18.78 | DC | Y250M-8 | 30 | 1700 | |
| 290.4 | 16.7 | 54.5 | 24.24 | Y280S-8 | 37 | ||||
| 420.9 | 13.5 | 53 | 29.14 | Y280M-8 | 45 | ||||
| 700 | 156.2 | 16.8 | 45 | 15.90 | BD | Y225M-6 | 30 | 1700 | |
| 274.7 | 14.9 | 54.5 | 20.52 | Y250M-6 | 37 | ||||
| 398.2 | 12.1 | 53 | 24.67 | Y280S-6 | 45 | ||||
| 650 | 145.1 | 14.5 | 45 | 12.73 | BD | Y200L2-6 | 22 | 1700 | |
| 255.4 | 12.9 | 54.5 | 16.43 | Y225M-6 | 30 | ||||
| 369.7 | 10.4 | 53 | 19.75 | Y250M-6 | 37 | ||||
| 600 | 133.9 | 12.3 | 45 | 10.01 | BD | Y225S-8 | 18.5 | 1700 | |
| 235.4 | 11.0 | 54.5 | 12.92 | Y225M-8 | 22 | ||||
| 341.3 | 8.9 | 53 | 15.53 | Y250M-8 | 30 | ||||
| 550 | 122.8 | 10.4 | 45 | 7.71 | BD | Y200L-8 | 15 | 1700 | |
| 215.8 | 9.2 | 54.5 | 9.95 | Y225S-8 | 18.5 | ||||
| 312.8 | 7.4 | 53 | 11.97 | Y225M-8 | 22 | ||||
| 500 | 111.6 | 8.9 | 45 | 5.79 | BD | Y180L-8 | 11 | 1700 | |
| 196.2 | 7.6 | 54.5 | 7.48 | ||||||
| 284.4 | 6.2 | 53 | 8.99 | Y200L-8 | 15 | ||||
