Anti Abrasion 500r/Min Centrifugal Slurry Pump High Pressure 150-LP(R)

1 Set
MOQ
Negotiable
Price
Anti Abrasion 500r/Min Centrifugal Slurry Pump High Pressure 150-LP(R)
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Centrifugal Slurry Pump
Application: Sewage
Standard Or Nonstandard: Standard
Warranty: 12 Months
Feature: High Efficiency,Long Life
Speed: 500r/Min
High Light:

500r/min centrifugal slurry pump

,

anti abrasion centrifugal slurry pump

,

500r/min high pressure slurry pump

Basic Infomation
Place of Origin: China
Brand Name: TM
Model Number: 150-LP
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 300 sets per month
Product Description

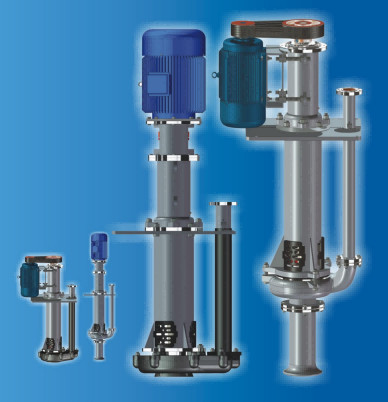

150-LP(R) Liquid Slurry Pump



1. Product details

LP(R) type pump is a centrifugal slurry pump, suitable for conveying abrasive or corrosive slurry.Pump generally invade the poor or pit work.The pump is divided into LP type and LPR type, with the same structure. The LP type flow parts and shaft are made of metal material,

Which is suitable for conveying abrasive slurry. LPR type flow parts are lined with abrasion-resistant rubber, suitable for conveying corrosive slag slurry. LPR type subsurface pump is widely used in metallurgy, mining, coal, electric power, building materials and other departments.

2. Structure Description

The pump body, impeller and guard plate of LP pump are made of wear-resistant materials, with sample structure and easy installation, pump body with bolts fixed in the branch of the rack, the upper end of the bracket is placed with the bearing body which is adopted double row tapered roller bearings, the driving end uses a single row cylindrical roller shift which can bear maximum load of pump, and can easily change pulley to fit the speed of the pump to meet different working conditions. With split mounting plate on the bracket, it can be conveniently fixed on the steel frame foundation or concrete one. The pump should be immersed in the slag slurry when it works, the pump body suction inlet with a filter which can prevent large particles.

The structure or LP and LPR are almost same except the LPR type are lined with corrosion resistant rubber for the parts immersed in the slag slurry, the rubber parts include shaft, pump body, impeller,guard plate and filter screen, the connecting bolts of the lower part of the immersion are protected by rubber sleeve.

3.The extended shaft series adds a extra guide bearing part, equipped with a flushing water pump, which requires a certain amount of water and pressure.





                                                Performance parameter of LP pump



Product Rotate Spped
n
r/min
Flow
Q
m3/h
Lift
H
m
Efficiency
η
%
Shaft Power
Pa
kw
Drive Type Motor Weight
Kg
Model Power
kw
150S-LP 1000 234.0 35.7 45 50.57 BD Y280S-4 75 1737
403.2 31.9 53 66.11
576.0 26.8 53 79.34 Y280M- 4 90
980 229.3 34.3 45 47.59 DC Y315S-6 75 1737
395.1 30.6 53 62.25
564.5 25.7 3 74.67 Y315M-6 90
940 220.0 31.5 45 42.00 BD Y315S-6 75 1737
379.0 28.2 53 54.91
541.4 23.7 53 65.90 Y315M-6 90
900 210.6 28.9 45 36.86 BD Y315S-6 75 1737
362.9 25.8 53 48.19
518.4 21.7 53 57.84 Y315M-6 90
850 198.9 25.8 45 31.06 BD Y280M-6 55 1737
342.7 23.0 53 40.60
489.6 19.4 53 48.72 Y315S-6 75
800 187.2 22.8 45 25.89 BD Y280S-6 45 1737
322.6 20.4 53 33.85
460.8 17.2 53 40.62 Y280M-6 55
740 173.2 19.5 45 20.49 DC Y250M-8 30 1737
298.4 17.5 53 26.79 Y280S-8 37
426.2 14.7 53 32.15 Y280M-8 45
700 163.8 17.5 45 17.34 BD Y225M-6 30 1737
282.2 15.6 53 22.67 Y250M-6 37
403.2 13.1 53 27.21 Y280S-6 45
650 151.1 15.1 45 13.89 BD Y200L2-6 22 1737
262.1 13.5 53 18.15 Y225M-6 30
374.4 11.3 53 21.79 Y250M-6 37
600 140.4 12.9 45 10.92 BD Y225S-8 18.5 1737
241.9 11.5 53 14.28 Y225M-8 22
345.6 9.6 53 17.14 Y250M-8 30
550 128.7 10.8 45 8.41 BD Y200L-8 15 1737
221.8 9.6 53 11.00 Y225S-8 18.5
316.8 8.1 53 13.20 Y225M-8 22
500 117.0 8.9 45 6.32 BD Y180L-8 11 1737
201.6 8.0 53 8.26
288.0 6.7 53 9.92 Y200L-8 15
