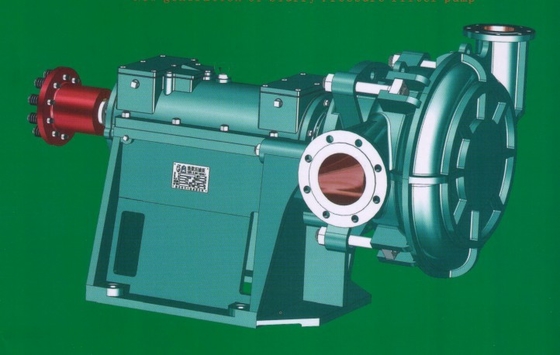

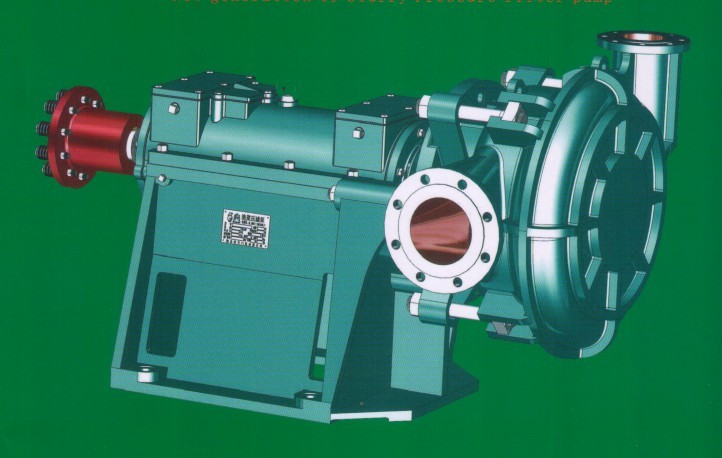

Slag Slurry Pressure Filter Pump
X40ZBYL-250 slag slurry pressure filter pump is a new generation of high-efficiency and energy-saving patented product, designed and produced by the company with comprehensive application of the latest pump design theory, aiming at the shortcomings of holding back the pump, material leakage and low efficiency .
|
Pump Type |
Speed n (r/min) |
Capacity Q (m3/h) |
Head H (m) |
Eff n (%) |
Power On Shaft (Kw) |
Motor |
Driving Form |
Allows the maximum particle diameter (mm) |
Inlet and outlet diameter |
||
|
Type |
Power (Kw) |
Outlet (mm) |
Inlet (mm) |
||||||||
| X40ZBYL-250 | 2950 |
0.0 21.6 36.0 50.4 64.8 |
75.4 72.6 68.0 60.4 49.1 |
0.0 30.8 42.0 46.7 45.6 |
11.7 13.8 15.9 17.8 19.0 |
Y200L-2 Y200L2-2 |
30 37 |
DC DCZ | 10 | 40 | 80 |
