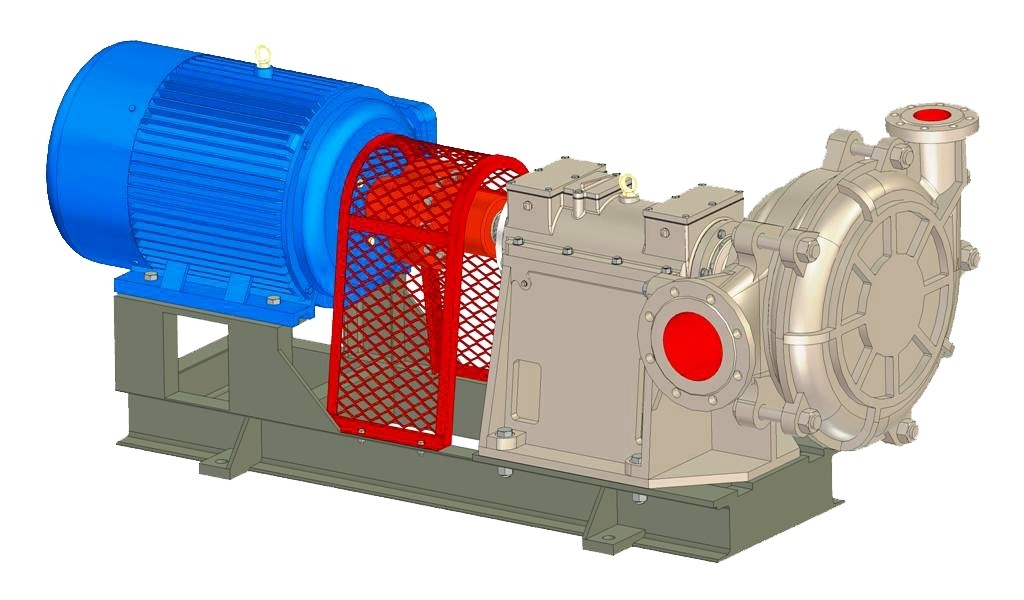

High-efficiency Slurry Filter Pump
Application
Coal industry: clean coal tailing coal dehydration.
Power industry: power plant fly ash treatment.
Mine smelting: separation of ore dressing, metal smelting process and pressure filtration of tailing.
Environmental protection sewage: urban industrial and living sewage treatment, chemical, light industrial sewage separation.
Non-metallic minerals: kaolin, bentonite, active clay and other dehydration.
General industry: petrochemical industry, chemical industry, dye industry (white carbon black) and other operations.
|
Pump Type |
Speed n (r/min) |
Capacity Q (m3/h) |
Head H (m) |
Eff n (%) |
Power On Shaft (Kw) |
Motor |
Driving Form |
Allows the maximum particle diameter (mm) |
Inlet and outlet diameter |
||
|
Type |
Power (Kw) |
Outlet (mm) |
Inlet (mm) |
||||||||
| X50ZBYL-250 | 2950 |
0.0 32.4 54.0 75.6 97.2 |
78.0 73.7 68.0 58.5 43.8 |
0.0 36.0 48.0 51.2 45.4 |
15.1 18.1 20.8 23.5 25.5 |
Y200L2-2 Y225M-2 Y250M-2 |
37 45 55 |
DC DCZ | 13 | 50 | 80 |
