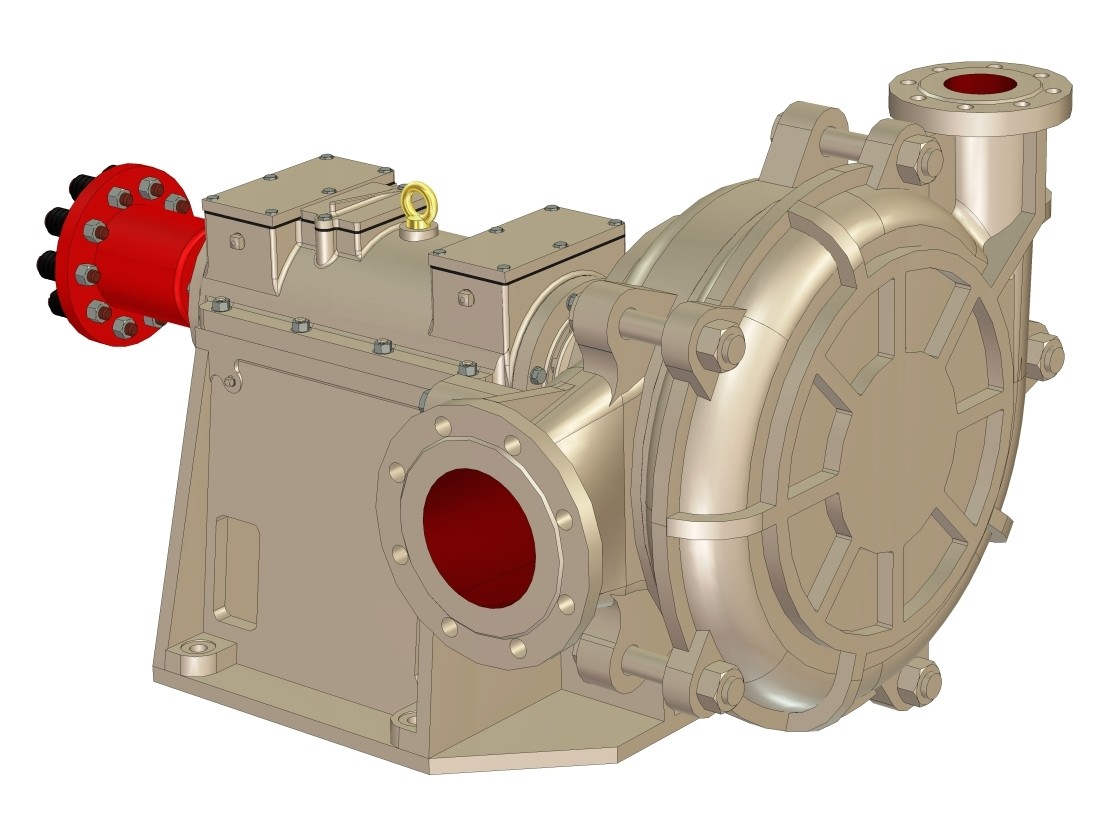

Energy-saving Slurry Pressure Filter Pump
The pump adopts the radial suction method, and the combination of the impeller sealing technology completely solves the leakage problem of the pump used in the filter press.
Application of pump CAD technology and optimization design, high pump efficiency.The efficiency of the series of pumps all meet the requirements for superior products in "JB/T53060-93 Product Quality Grading of Centrifuge Sludge Pump".
|
Pump Type |
Speed n (r/min) |
Capacity Q (m3/h) |
Head H (m) |
Eff n (%) |
Power On Shaft (Kw) |
Mo tor |
Driving Form |
Allows the maximum particle diameter (mm) |
Inlet and outlet diameter |
||
|
Type |
Power (Kw) |
Outlet (mm) |
Inlet (mm) |
||||||||
| X65ZBYL-450 | 1480 | 0.0 54.0 90.0 126.0 162.0 |
75.9 72.4 68.0 60.1 46.9 |
0.0 34.6 45.0 47.8 43.5 |
24.4 30.7 37.0 43.1 47.5 |
Y250M-4 Y280S-4 Y280M-4 |
55 75 90 |
DC DCZ | 16 | 65 | 102 |
