Electric 1440rpm 3kw Sewage Slurry Mud Pump Low Abrasion 32ZBG-250

1 Set
MOQ
Negotiable
Price
Electric 1440rpm 3kw Sewage Slurry Mud Pump Low Abrasion 32ZBG-250
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

1440rpm sewage slurry mud pump

,

3kw sewage slurry mud pump

,

3kw electric slurry pump

Basic Infomation
Place of Origin: China
Brand Name: TM
Certification: ISO9001:2000
Model Number: 32ZBG-250
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 200 sets per month
Product Description

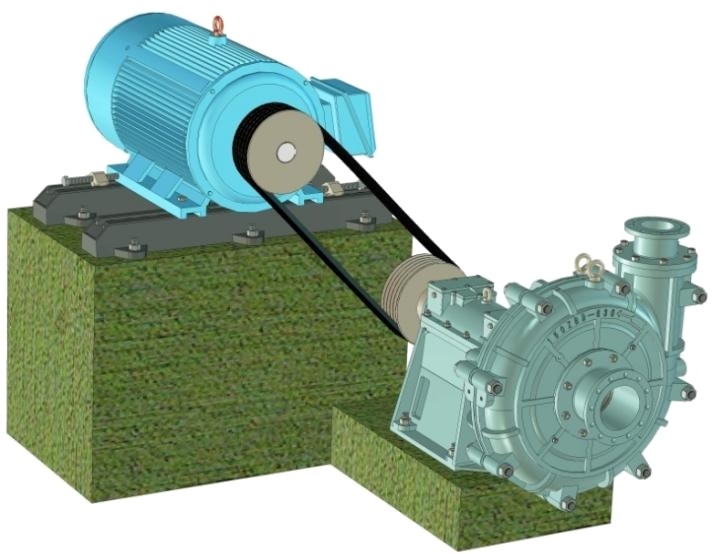

32ZBG-250 Slurry Pump

  •
    With the comprehensive application of latest designing theory, the optimization of methods and CAD, CFD and CAPP in pump-design, the slurry pump is of sound hydraulic performance, high efficiency and low abrasion and corrosion.
  • Besides the wide passage, non-clogging and anti-corrosion of vapor is also superb.
  • The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry.
  • The reliable design grants the tremendous improvement in MTBF.
  • The adoption of metric bearing with oil lubrication, reasonable structure of cooling system with oil lubrication guarantees the working of bearing in the optimal temperature.
  • The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.
  • And it is engineered in ways of direct connection drive, thus resulting in enhanced efficiency. According to customers’ requirement the belt-convey can also be utilized.
  •
  • Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed

  • Type



    Speed

    n

    r/min



    Capacity

    Q

    m3/h



    Head

    H

    m



    Eff.

    n

    %



    Matching Motor Power

    kw



    Speed

    n

    r/min



    Capacity

    Q

    m3/h



    Head

    H

    m



    Eff.

    n

    %



    Matching Motor Power

    kw

        10.8 91.7 22.1     5.3 22.0 19.0
    32ZBG-250 2940 18.0 90.0 32.0 18.5-22 1440 8.8 21.6 27.5 2.2-3
        21.6 87.9 35.3     10.6 21.1 30.3
        10.2 81.5 21.8     5.0 19.6 18.7
    32ZBG-250A 2940 17.0 80.0 31.6 15 - 18.5 1440 8.3 19.2 27.1 2.2
        20.4 78.1 34.9     10.0 18.7 29.9
        9.5 71.3 21.5     4.7 17.1 18.4
    32ZBG-250B 2940 15.9 70.0 31.2 11-15 1440 7.8 16.8 26.7 1.5-2.2
        19.0 68.4 34.4     9.3 16.4 29.4
        8.8 61.1 21.2     4.3 14.7 18.1
    32ZBG-250C 2940 14.7 60.0 30.7 11 1440 7.2 14.4 26.2 1.1-1.5
        17.6 58.6 33.9     8.6 14.1 28.9
