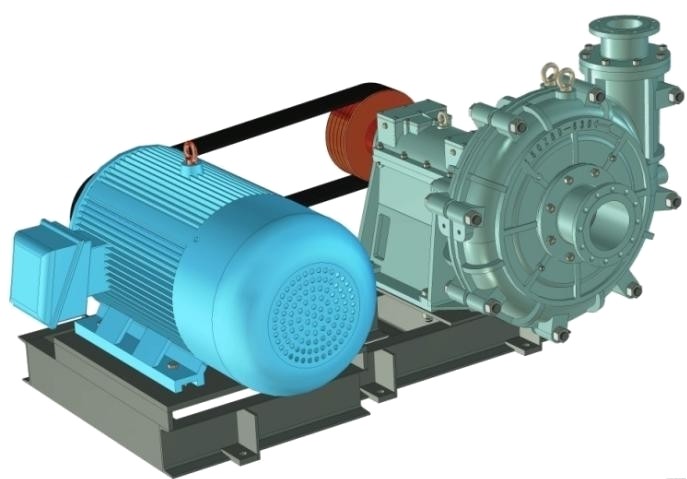

Wear Resistant 21.6m3/h Submersible Slurry Pump Horizontal 32ZBG-200

32ZBG-200 Slurry Pump

• With the comprehensive application of latest designing theory, the optimization of methods and CAD, CFD and CAPP in pump-design, the slurry pump is of sound hydraulic performance, high efficiency and low abrasion and corrosion.
• Besides the wide passage, non-clogging and anti-corrosion of vapor is also superb.
• The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry.
• The reliable design grants the tremendous improvement in MTBF.
• The adoption of metric bearing with oil lubrication, reasonable structure of cooling system with oil lubrication guarantees the working of bearing in the optimal temperature.
• The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.
• And it is engineered in ways of direct connection drive, thus resulting in enhanced efficiency. According to customers’ requirement the belt-convey can also be utilized.
•
•

• Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed

• Type	Speed n r/min	Capacity Q m3/h	Head H m	Eff. n %	Matching Motor Power kw	Speed n r/min	Capacity Q m3/h	Head H m	Eff. n %	Matching Motor Power kw
  32ZBD-200	2900	18.0	50.0	42.0	7.5 - 11	1400	8.7	11.7	36.5	1.1-1.5
  		21.6	48.3	45.2			10.4	11.3	39.3
  		10.1	45.9	30.7			4.9	10.7	26.7
  32ZBD-200A	2900	16.9	44.0	41.5	7.5-11	1400	8.2	10.3	36.1	1.1
  		20.3	42.5	44.7			9.8	9.9	38.8
  		9.4	39.7	30.3			4.5	9.2	26.3
  32ZBD-200B	2900	15.7	38.0	41.0	5.5-7.5	1400	7.6	8.9	35.5	1.1
  		18.8	36.7	44.1			9.1	8.6	38.2
