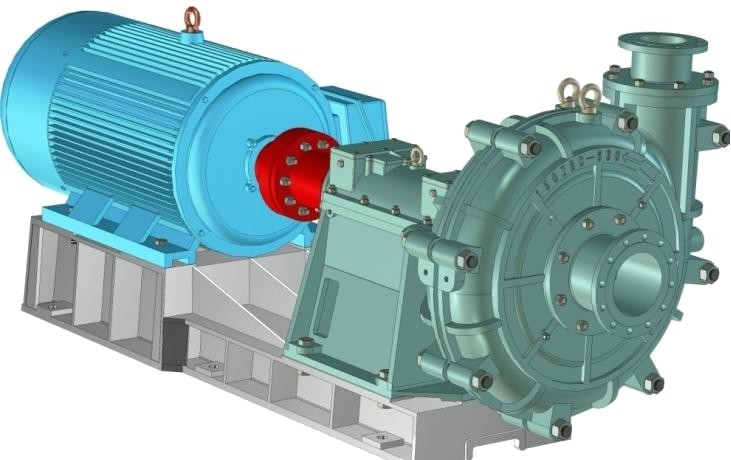

Non Clogging Submersible Slurry Pump , 4kw Ash Slurry Pump 40ZBG-250

40ZBG-250 Slag Slurry Pump

• With the comprehensive application of latest designing theory, the optimization of methods and CAD, CFD and CAPP in pump-design, the slurry pump is of sound hydraulic performance, high efficiency and low abrasion and corrosion.
• Besides the wide passage, non-clogging and anti-corrosion of vapor is also superb.
• The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry.
• The reliable design grants the tremendous improvement in MTBF.
• The adoption of metric bearing with oil lubrication, reasonable structure of cooling system with oil lubrication guarantees the working of bearing in the optimal temperature.
• The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.
• And it is engineered in ways of direct connection drive, thus resulting in enhanced efficiency. According to customers’ requirement the belt-convey can also be utilized.

• Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed

• Type	Speed n r/min	Capacity Q m3/h	Head H m	Eff. n %	Matching Motor Power kw	Speed n r/min	Capacity Q m3/h	Head H m	Eff. n %	Matching Motor Power kw
  40ZBG-250	2940	32.0	90.0	42.4	30-37	1440	15.7	21.6	37.3	3~4
  		38.4	87.3	46.0			18.8	20.9	40.5
  		18.1	81.8	30.3			8.9	19.6	26.6
  40ZBG-250A	2940	30.2	80.0	42.0	18.5-30	1440	14.8	19.2	36.9	3~4
  		36.2	77.6	45.5			17.7	18.6	40.1
  		16.9	71.6	30.0			8.3	17.2	26.3
  40ZBG-250B	2940	28.2	70.0	41.5	15-22	1440	13.8	16.8	36.4	2.2-3
  		33.9	67.9	45.0			16.6	16.3	39.5
  		15.7	61.3	29.6			7.7	14.7	25.9
  40ZBG-250C	2940	26.1	60.0	41.0	15 ~ 18.5	1440	12.8	14.4	35.9	2.2
  		31.4	58.2	44.4			15.4	14.0	38.9

• FAQ



• Q: What’ the MOQ?

• A: Trial sample is ok.


• Q: Are you factory or trading company?
• A: We are a manufacturer.

•

• Q: Can you accept to use our logo?
• A: Yes, we can do OEM for you.

•

• Q: How can I get the pump?
• A: Usually we suggest express for samples, if the volume reaches 1m³,the seaway will be better.

•

• Q: What’s the warranty period?
• A: 1 year
•
