1430r/Min Heavy Duty Submersible Pump , 2.2kw Slurry Handling Pumps 40ZBG-200

1 Set
MOQ
Negotiable
Price
1430r/Min Heavy Duty Submersible Pump , 2.2kw Slurry Handling Pumps 40ZBG-200
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

1430r/min heavy duty submersible pump

,

2.2kw heavy duty submersible pump

,

2.2kw slurry handling pumps

Basic Infomation
Place of Origin: China
Brand Name: TM
Certification: ISO9001:2000
Model Number: 40ZBG-200
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 200 sets per months
Product Description

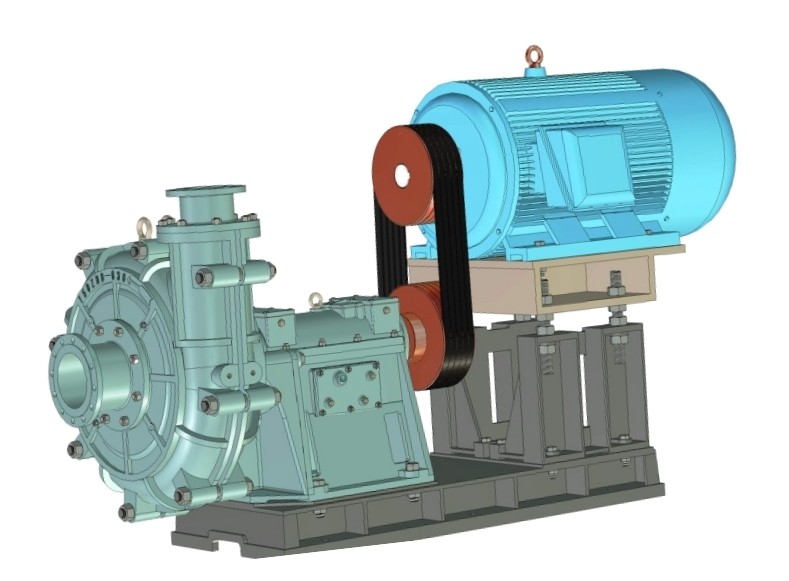

40ZBG-200 Slag Slurry Pump

  • With the comprehensive application of latest designing theory, the optimization of methods and CAD, CFD and CAPP in pump-design, the slurry pump is of sound hydraulic performance, high efficiency and low abrasion and corrosion.
  • Besides the wide passage, non-clogging and anti-corrosion of vapor is also superb.
  • The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry
  • The reliable design grants the tremendous improvement in MTBF.
  • The adoption of metric bearing with oil lubrication, reasonable structure of cooling system with oil lubrication guarantees the working of bearing in the optimal temperature.
  • The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.
  • And it is engineered in ways of direct connection drive, thus resulting in enhanced efficiency. According to customers’ requirement the belt-convey can also be utilized.



  • Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed

  •

     Type



    Speed

    n

    r/min



    Capacity

    Q

    m3/h



    Head

    H

    m



    Eff.

    n

    %



    Matching Motor Power

    kw



    Speed

    n

    r/min



    Capacity

    Q

    m3/h



    Head

    H

    m



    Eff.

    n

    %



    Matching Motor Power

    kw

    40ZBD-200 2930 32.0 50.0 55.0 11-15 1430 15.6 11.9 49.1 1.5-2.2
        38.4 48.4 58.5     18.7 11.5 52.2
        18.0 45.5 41.5     8.8 10.8 37.0
    40ZBD-200A 2930 30.0 44.0 54.5 11-15 1430 14.7 10.5 48.6 1.5-2.2
        36.0 42.6 57.9     17.6 10.1 51.6
        16.7 39.3 41.0     8.2 9.4 36.5
    40ZBD-200B 2930 27.9 38.0 53.9 7.5 ~ 11 1430 13.6 9.1 47.9 1.5-2.2
        33.5 36.8 57.3     16.3 8.8 51.0
