18.5KW 980r/Min Submersible Sand Pump High Pressure 50ZBG(P)-530

1 Set
MOQ
Negotiable
Price
18.5KW 980r/Min Submersible Sand Pump High Pressure 50ZBG(P)-530
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Sewage,Submersible,clean Water
Usage: Water,slurry,chemical Industry,pumping Of Water
Structure: Single-stage Pump
Material: Cast Iron
Warranty: 12 Months
Feature: High Efficiency,Long Life
High Light:

980r/min submersible sand pump

,

18.5KW submersible sand pump

,

980r/min high pressure slurry pump

Basic Infomation
Place of Origin: China
Brand Name: TM
Certification: ISO9001:2000
Model Number: 50ZBG(P)-530
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 200 sets per month
Product Description

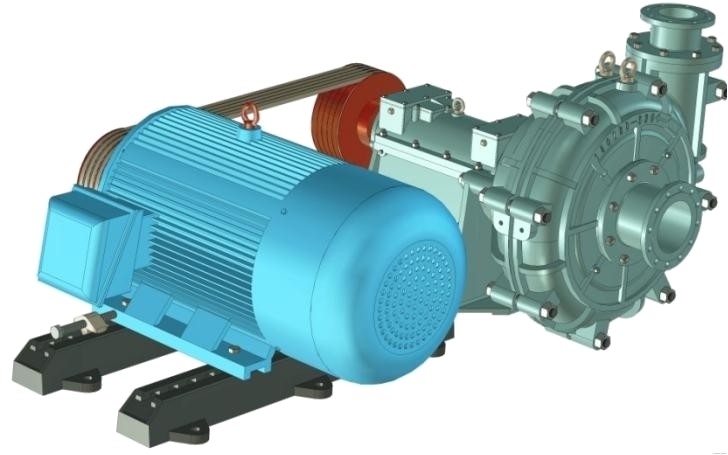

50ZBG(P)-530 Slag Slurry Pump

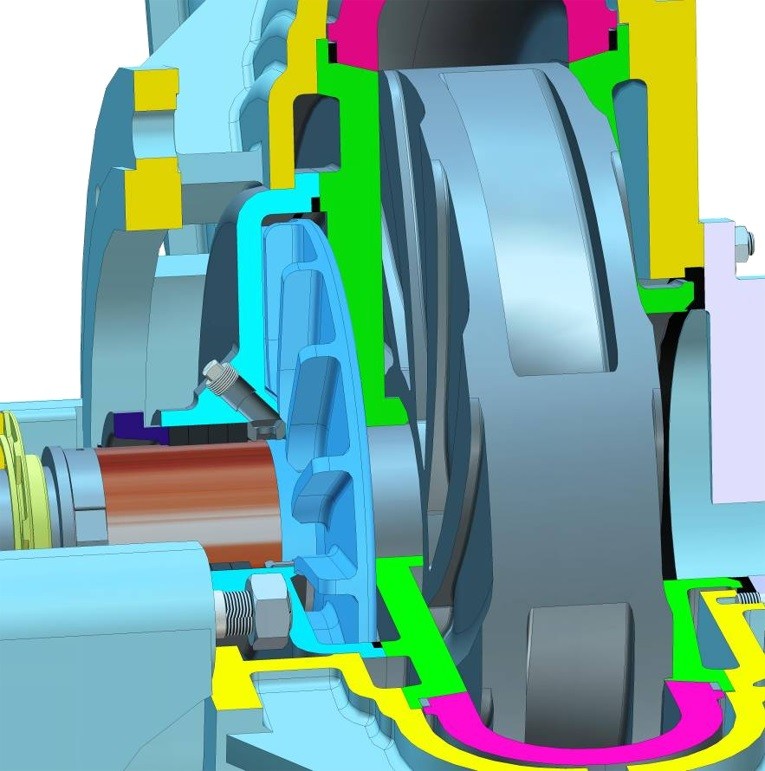

  • The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry.
  • The reliable design grants the tremendous improvement in MTBF.
  • The adoption of metric bearing with oil lubrication, reasonable structure of cooling system with oil lubrication guarantees the working of bearing in the optimal temperature.
  • The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.
  • And it is engineered in ways of direct connection drive, thus resulting in enhanced efficiency. According to customers’ requirement the belt-convey can also be utilized.




                                     Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed

  •

    Type



    Speed

    n

    r/min



    Capacity

    Q

    m3/h



    Head

    H

    m



    Eff.

    n

    %



    Matching Motor Power

    kw



    Speed

    n

    r/min



    Capacity

    Q

    m3/h



    Head

    H

    m



    Eff.

    n

    %



    Matching Motor Power

    kw

    50ZBG(P)-530148055.0105.032.045-7598036.446.029.815-18.5
      66.0103.335.6  43.745.333.1
      31.697.621.7  20.942.820.2
    50ZBG(P)-530A148052.696.031.845-5598034.842.129.515 ~ 18.5
      63.194.435.3  41.841.432.8
      30.088.421.6  19.938.820.0
    50ZBG(P)-530B148050.187.031.537-4598033.238.129.311-15
      60.185.635.0  39.837.532.5
      28.479.321.3  18.834.819.8
    50ZBG(P)-530C148047.478.031.230-4598031.434.229.011-15
      56.976.734.7  37.733.632.2
      26.870.121.1  17.730.719.6
    50ZBG(P)-530D148044.669.030.930-3798029.530.328.611
      53.567.934.3  35.429.831.8



FAQ

  1. Q: What’ the MOQ?

           A: Trial sample is ok.


  1. Q: Are you factory or trading company?

     A: We are a manufacturer.


  1. Q: Can you accept to use our logo?

     A: Yes, we can do OEM for you.


  1. Q: How can I get the pump?

         A: Usually we suggest express for samples, if the volume reaches 1m3,the seaway will be better.



  1. Q: What’s the warranty period?

     A: 1 year
