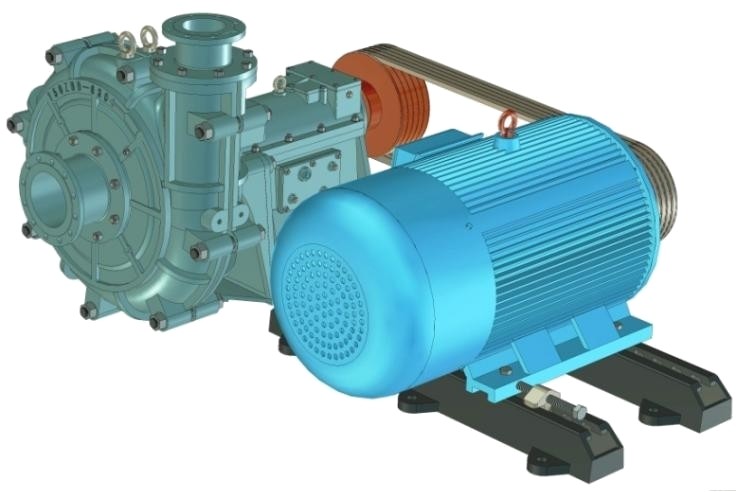

50ZBG(P)-400 Slag Slurry Pump
Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At Th
|
Type |
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff. n % |
Matching Motor Power kw |
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff. n % |
Matching Motor Power kw |
| 50ZBG(P)-400 | 1470 | 55.0 | 60.0 | 48.5 | 22-30 | 970 | 36.3 | 26.1 | 45.3 | 7.5-11 |
| 66.0 | 58.5 | 52.4 | 43.6 | 25.5 | 49.0 | |||||
| 31.5 | 55.9 | 35.0 | 20.8 | 24.3 | 32.7 | |||||
| 50ZBG(P)-400A | 1470 | 52.4 | 54.5 | 48.1 | 22-30 | 970 | 34.6 | 23.7 | 45.0 | 7.5-11 |
| 62.9 | 53.1 | 52.0 | 41.5 | 23.1 | 48.6 | |||||
| 29.8 | 50.2 | 34.7 | 19.7 | 21.9 | 32.4 | |||||
| 50ZBG(P)-400B | 1470 | 49.7 | 49.0 | 47.7 | 18.5-22 | 970 | 32.8 | 21.3 | 44.6 | 5.5-7.5 |
| 59.6 | 47.8 | 51.6 | 39.4 | 20.8 | 48.1 | |||||
| 28.1 | 44.6 | 34.4 | 18.5 | 19.4 | 32.1 | |||||
| 50ZBG(P)-400C | 1470 | 46.8 | 43.5 | 47.3 | 15-18.5 | 970 | 30.9 | 18.9 | 44.1 | 5.5-7.5 |
| 56.2 | 42.4 | 51.1 | 37.1 | 18.5 | 47.7 | |||||
| 26.3 | 39.0 | 34.0 | 17.3 | 17.0 | 31.7 | |||||
| 50ZBG(P)-400D | 1470 | 43.8 | 38.0 | 46.8 | 11-15 | 970 | 28.9 | 16.5 | 43.6 | 4-5.5 |
| 52.5 | 37.1 | 50.5 | 34.7 | 16.1 | 47.1 |
