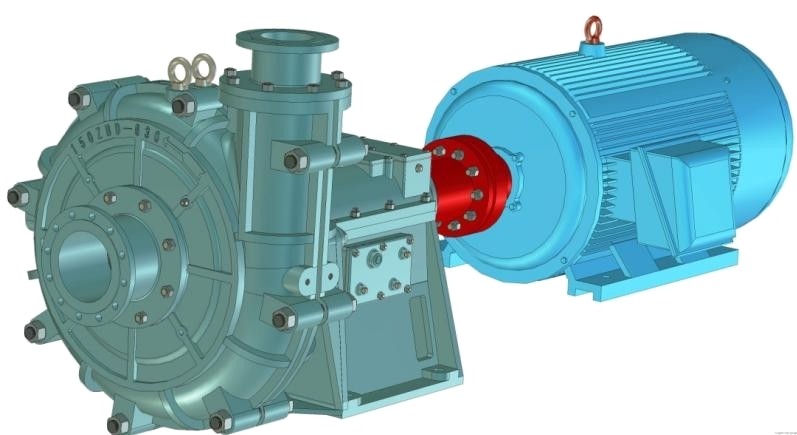

Corrosion Proof 1470rpm Hydraulic Submersible Slurry Pump 65ZBD-315

65ZBD-315 Slag Slurry Pump

• With the comprehensive application of latest designing theory, the optimization of methods and CAD, CFD and CAPP in pump-design, the slurry pump is of sound hydraulic performance, high efficiency and low abrasion and corrosion.
• Besides the wide passage, non-clogging and anti-corrosion of vapor is also superb.

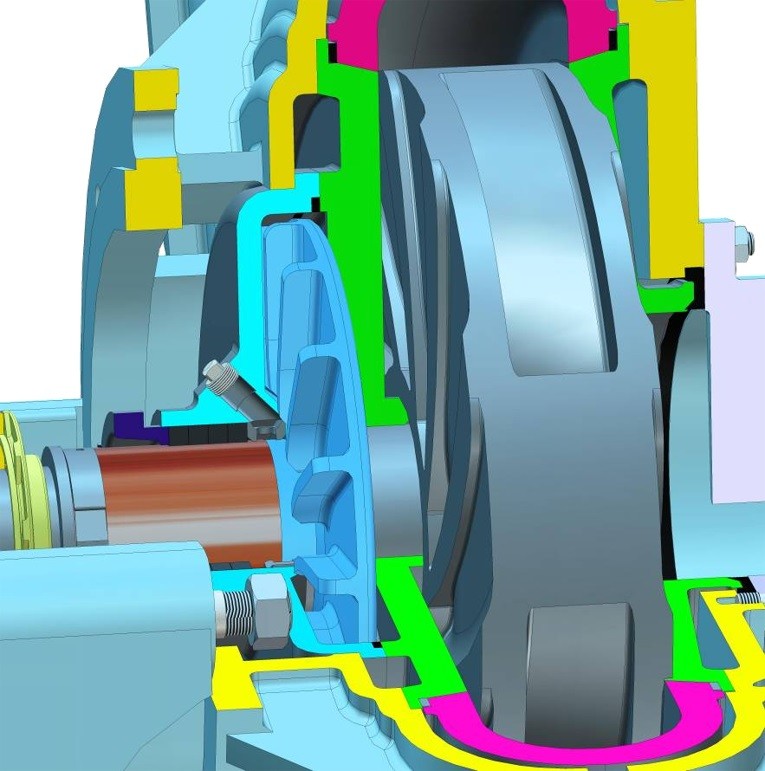

• The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry.
• The reliable design grants the tremendous improvement in MTBF.
• The adoption of metric bearing with oil lubrication, reasonable structure of cooling system with oil lubrication guarantees the working of bearing in the optimal temperature.
• The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.
• And it is engineered in ways of direct connection drive, thus resulting in enhanced efficiency. According to customers’ requirement the belt-convey can also be utilized.

• Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The

• Type	Speed n r/min	Capacity Q m3/h	Head H m	Eff. n %	Matching Motor Power kw	Speed n r/min	Capacity Q m3/h	Head H m	Eff. n %	Matching Motor Power kw
  65ZBD-315	1470	95.0	32.0	65.0	18.5-22	970	62.7	13.9	61.7	5.5-7.5
  		114.0	30.5	67.4			75.2	13.3	64.0
  		53.3	29.2	51.7			35.2	12.7	49.0
  65ZBD-315A	1470	88.9	28.0	64.5	15 - 18.5	970	58.6	12.2	61.2	4-5.5
  		106.6	26.7	66.8			70.4	11.6	63.4
  		49.4	25.1	51.2			32.6	10.9	48.5
  65ZBD-315B	1470	82.3	24.0	63.9	11-15	970	54.3	10.5	60.6	3~4
  		98.7	22.9	66.2			65.1	10.0	62.8
