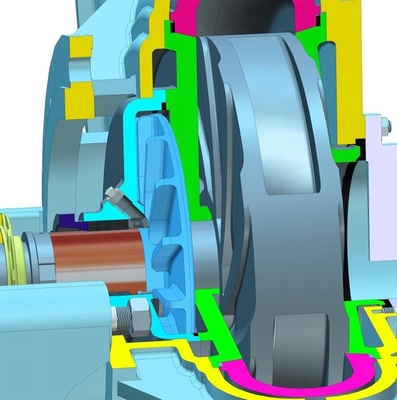

80ZBG(P)-485 Slag Slurry Pump
Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The
|
Type |
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff. n % |
Matching Motor Power kw |
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff. n % |
Matching Motor Power kw |
| 80ZBG(P)-485 | 1480 | 170.0 | 90.0 | 63.0 | 90 -110 | 980 | 112.6 | 39.5 | 59.7 | 30-37 |
| 204.0 | 86.2 | 65.8 | 135.1 | 37.8 | 62.3 | |||||
| 97.4 | 85.6 | 48.9 | 64.5 | 37.5 | 46.3 | |||||
| 80ZBG(P)-485A | 1480 | 162.3 | 82.0 | 62.6 | 75-90 | 980 | 107.4 | 36.0 | 59.3 | 22-30 |
| 194.7 | 78.5 | 65.4 | 128.9 | 34.4 | 62.0 | |||||
| 92.5 | 77.2 | 48.6 | 61.2 | 33.9 | 46.0 | |||||
| 80ZBG(P)-485B | 1480 | 154.2 | 74.0 | 62.2 | 75-90 | 980 | 102.1 | 32.4 | 58.9 | 22-30 |
| 185.0 | 70.9 | 65.0 | 122.5 | 31.1 | 61.5 | |||||
| 87.3 | 68.9 | 48.2 | 57.8 | 30.2 | 45.6 | |||||
| 80ZBG(P)-485C | 1480 | 145.6 | 66.0 | 61.8 | 55-75 | 980 | 96.4 | 28.9 | 58.4 | 18.5-22 |
| 174.7 | 63.2 | 64.5 | 115.7 | 27.7 | 61.0 | |||||
| 81.9 | 60.5 | 47.8 | 54.2 | 26.5 | 45.2 | |||||
| 80ZBG(P)-485D | 1480 | 136.5 | 58.0 | 61.2 | 45-55 | 980 | 90.4 | 25.4 | 57.9 | 15 ~ 18.5 |
| 163.8 | 55.6 | 64.0 | 108.4 | 24.4 | 60.5 |
