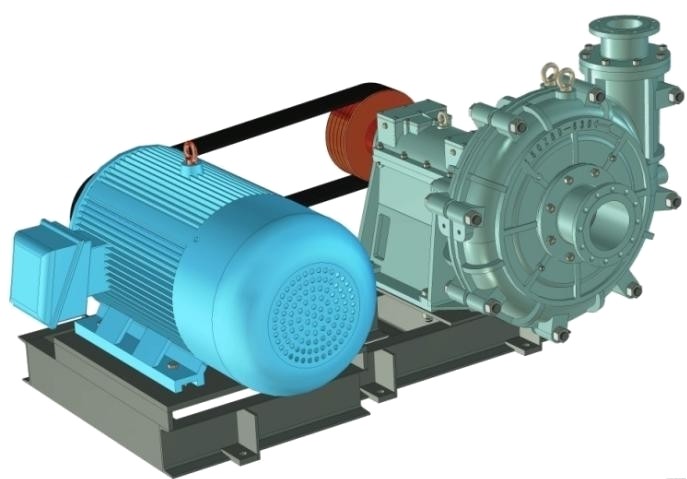

80ZBD-315 Slag Slurry Pump
Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed
Type |
n r/min |
Capacity Q m3/h |
Head H m |
Eff. n % |
Matching Motor Power kw |
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff. n % |
Matching Motor Power kw |
80ZBD-315 | 1480 | 165.0 | 32.0 | 69.0 | 30-37 | 980 | 109.3 | 14.0 | 65.8 | 11 |
198.0 | 29.3 | 68.4 | 131.1 | 12.8 | 65.3 | |||||
92.6 | 31.1 | 60.2 | 61.3 | 13.6 | 57.5 | |||||
80ZBD-315A | 1480 | 154.3 | 28.0 | 68.5 | 22-30 | 980 | 102.2 | 12.3 | 65.3 | 7.5-11 |
185.2 | 25.6 | 67.9 | 122.6 | 11.2 | 64.7 | |||||
85.7 | 26.6 | 59.7 | 56.8 | 11.7 | 56.9 | |||||
80ZBD-315B | 1480 | 142.9 | 24.0 | 67.9 | 18.5-22 | 980 | 94.6 | 10.5 | 64.7 | 5.5-7.5 |
171.5 | 22.0 | 67.3 | 113.5 | 9.6 | 64.2 |
