185kw 1480rpm Sewage Slurry Mud Pump High Viscosity 100ZBG(P)-500

1 Set
MOQ
Negotiable
Price
185kw 1480rpm Sewage Slurry Mud Pump High Viscosity 100ZBG(P)-500
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Sewage Slurry Mud Pump
Application: Sewage,Submersible
Pressure: High Pressure
Standard Or Nonstandard: Standard
Warranty: 12 Months
Material: Cast Iron
High Light:

1480rpm sewage slurry mud pump

,

185kw sewage slurry mud pump

,

1480rpm high viscosity pump

Basic Infomation
Place of Origin: China
Brand Name: TM
Certification: ISO9001:2000
Model Number: 100ZBG(P)-500
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 200 sets per month
Product Description

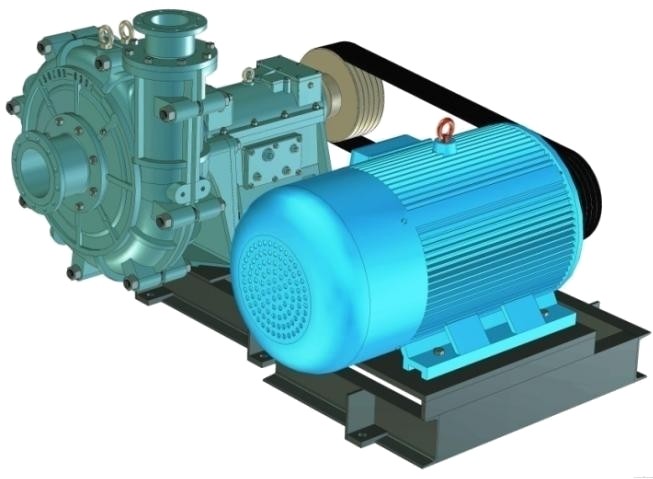

100ZBG(P)-500 Slag Slurry Pump

  • The slurry pump is of good hydraulic performance, high efficiency and low abrasion and corrosion.
  • Besides the wide passage, non-clogging and anti-corrosion of vapor is also superb.

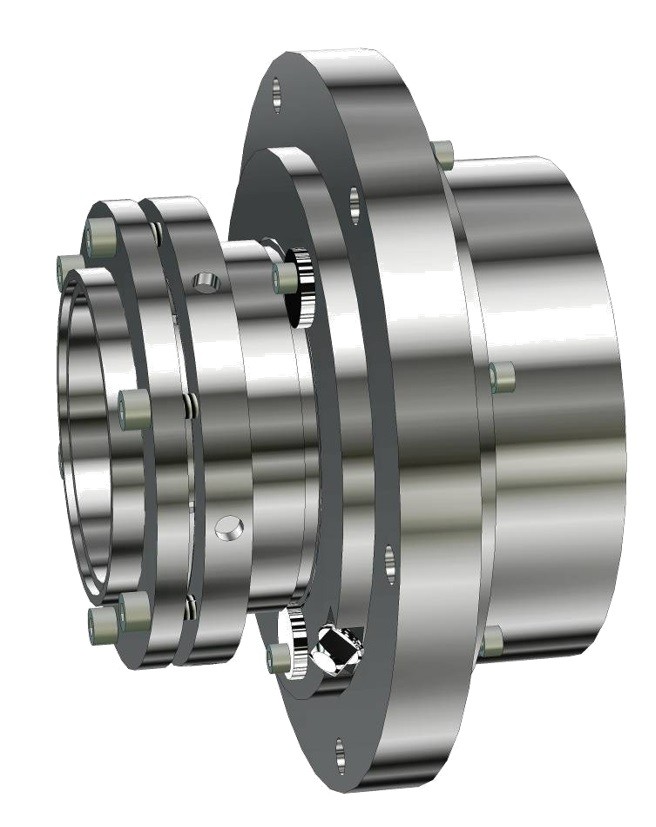

  • The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry.
  • The reliable design grants the tremendous improvement in MTBF.
  • The adoption of metric bearing with oil lubrication, reasonable structure of cooling system with oil lubrication guarantees the working of bearing in the optimal temperature.
  • The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.
  •



Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps



        Type



Speed

n

r/min



Capacity

Q

m3/h



Head

H

m



Eff.

n

%



Matching Motor Power

kw



Speed

n

r/min



Capacity

Q

m3/h



Head

H

m



Eff.

n

%



Matching Motor Power

kw

100ZBG(P)-5001480300.090.068.0132 -185980198.639.564.845-55
  360.086.170.4  238.437.867.1
  171.885.855.4  113.837.652.8
100ZBG(P)-500A1480286.482.067.6110~160980189.636.064.537-45
  343.678.470.0  227.534.466.8
  163.277.555.1  108.134.052.5
100ZBG(P)-500B1480272.074.067.3110~132980180.132.464.137-45
  326.470.869.6  216.231.066.4
  154.169.154.7  102.130.352.1
100ZBG(P)-500C1480256.966.066.890 -110980170.128.963.730-37
  308.363.169.2  204.127.765.9
  144.560.754.3  95.726.651.7
100ZBG(P)-500D1480240.858.066.375-90980159.525.463.222-30
  289.055.568.7  191.424.365.4




FAQ

  1. Q: What’ the MOQ?

           A: Trial sample is ok.


  1. Q: Are you factory or trading company?

    A: We are a manufacturer.


  1. Q: Can you accept to use our logo?

     A: Yes, we can do OEM for you.


  1. Q: How can I get the pump?

         A: Usually we suggest express for samples, if the volume reaches 1m3,the seaway will be better.



  1. Q: What’s the warranty period?

     A: 1 year
