Electric 45kw High Head Submersible Slurry Pump Anti Abrasion 100ZBD-315

1 Set
MOQ
Negotiable
Price
Electric 45kw High Head Submersible Slurry Pump Anti Abrasion 100ZBD-315
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Submersible Slurry Pump
Application: Sewage,Submersible
Pressure: High Pressure
Standard Or Nonstandard: Standard
Warranty: 12 Months
Usage: Water,slurry,chemical Industry,pumping Of Water
High Light:

anti abrasion submersible slurry pump

,

45kw submersible slurry pump

,

45kw electric slurry pump

Basic Infomation
Place of Origin: China
Brand Name: TM
Certification: ISO9001:2000
Model Number: 100ZBD-315
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 200 sets per month
Product Description

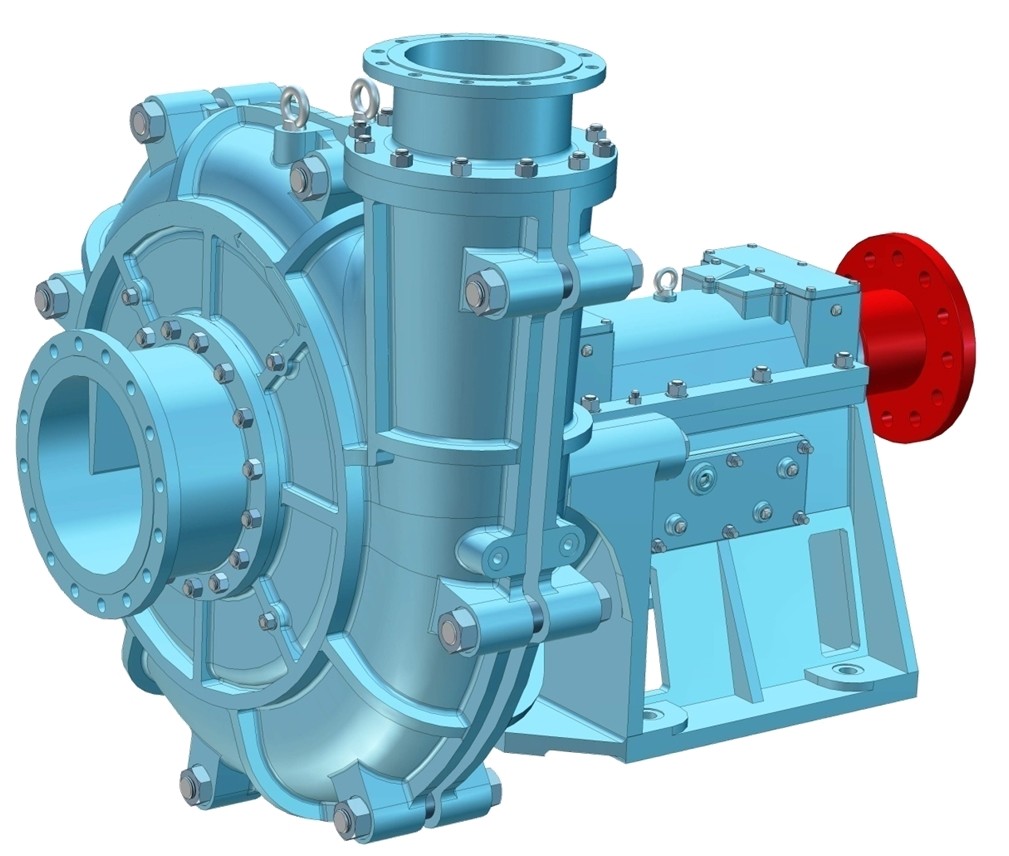

   100ZBD-315 Slag Slurry Pump



The universal feature of ZBG,ZBD  series slurry pump

  • With the comprehensive application of latest designing theory, the optimization of methods and CAD, CFD and CAPP in pump-design, the slurry pump is of good hydraulic performance, high efficiency and low abrasion and corrosion.
  • Besides the wide passage, non-clogging and anti-corrosion of vapor is also superb.
  • The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry.
  • The reliable design grants the tremendous improvement in MTBF.
  • The adoption of metric bearing with oil lubrication, reasonable structure of cooling system with oil lubrication guarantees the working of bearing in the optimal temperature.
  • The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.

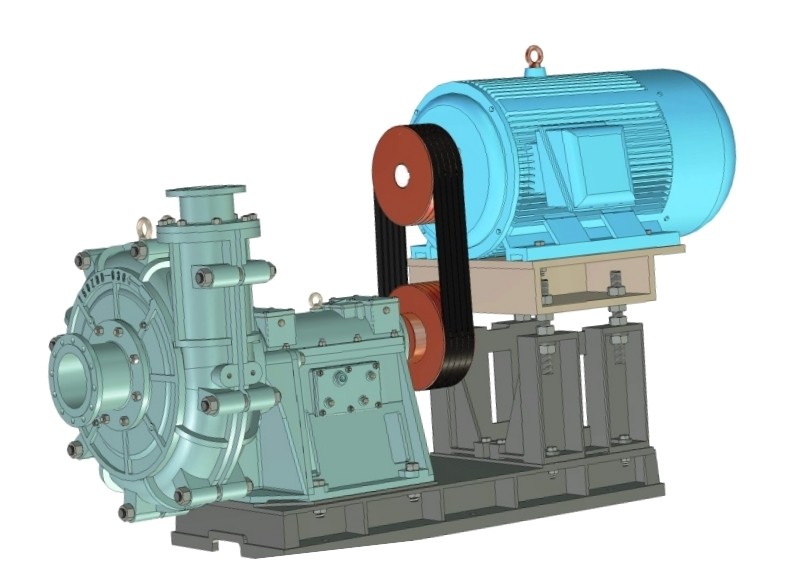

  • And it is engineered in ways of direct connection drive, thus resulting in enhanced efficiency. According to customers’ requirement the belt-convey can also be utilized.





                                    Clear Water Performance Parameter of ZBG and ZBD Series  Pumps



 Type



Speed

n

r/min



Capacity

Q

m3/h



Head

H

m



Eff.

n

%



Matching Motor Power

kw



Speed

n

r/min



Capacity

Q

m3/h



Head

H

m



Eff.

n

%



Matching Motor Power

kw

100ZBD-315 1480 288.0 32.0 72.4 45-55 980 190.7 14.0 69.3 15-18.5
    345.6 29.4 72.4     228.8 12.9 69.3
    161.6 31.2 62.8     107.0 13.7 60.0
100ZBD-315A 1480 269.4 28.0 71.9 37-45 980 178.4 12.3 68.8 11-15
    323.3 25.7 71.9     214.1 11.3 68.8
    149.6 26.8 62.2     99.1 11.7 59.5
100ZBD-315B 1480 249.4 24.0 71.3 30-37 980 165.2 10.5 68.2 11
    299.3 22.1 71.3     198.2 9.7 68.2







FAQ

  1. Q: What’ the MOQ?

          A: Trial sample is ok.



  1. Q: Are you factory or trading company?

    A: We are a manufacturer.



  1. Q: Can you accept to use our logo?

     A: Yes, we can do OEM for you.



  1. Q: How can I get the pump?

        A: Usually we suggest express for samples, if the volume reaches 1m3,the seaway will be better.



  1. Q: What’s the warranty period?

     A: 1 year
