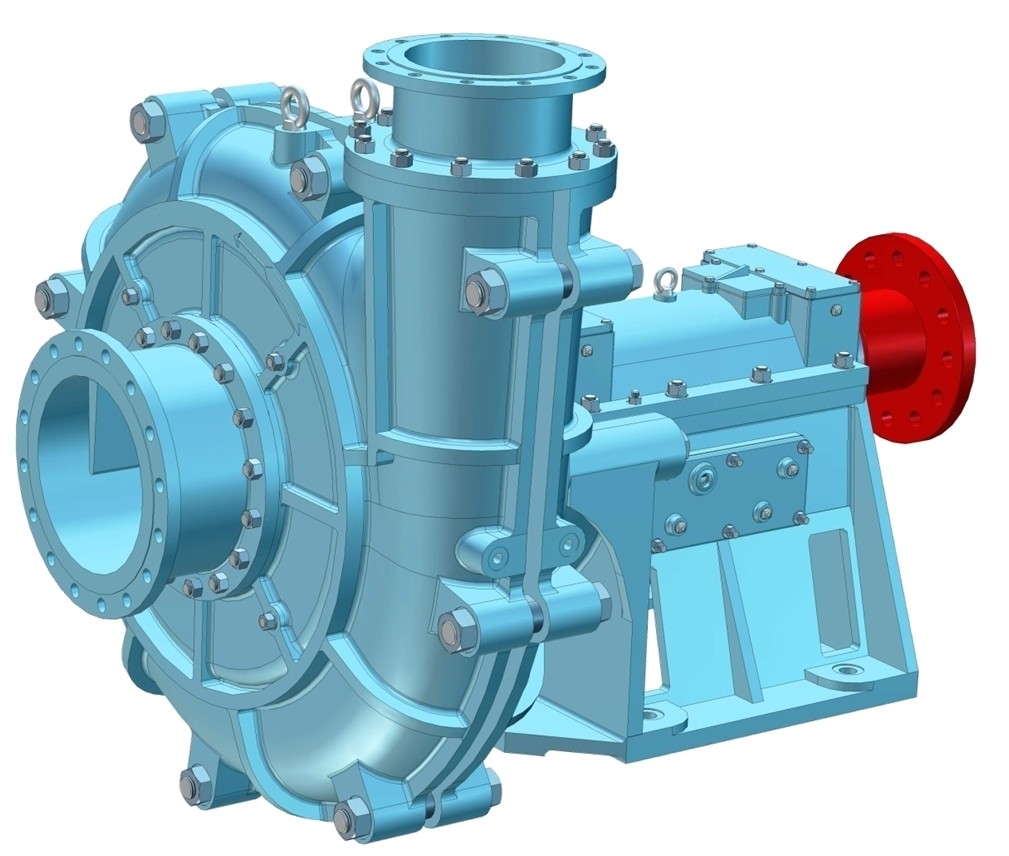

150ZBG(P)-740 Slag Slurry Pump

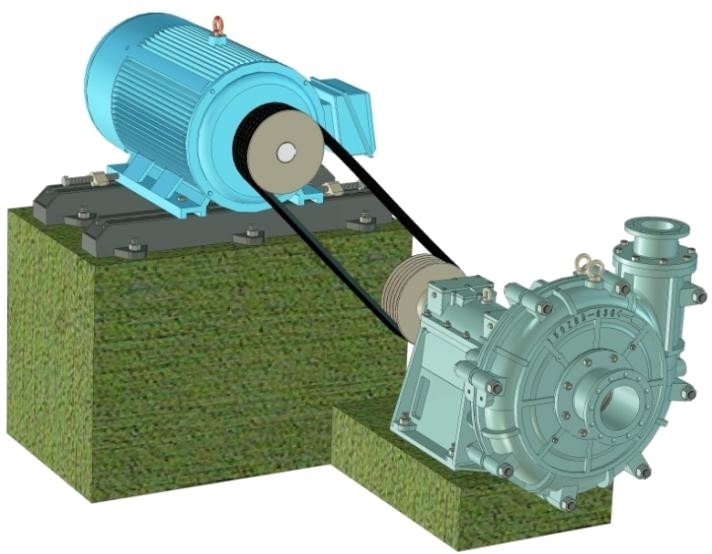

It is engineered in ways of direct connection drive, thus resulting in enhanced efficiency. According to customers’ requirement the belt-convey can also be utilized
The adoption of metric bearing with oil lubrication, reasonable structure of cooling system with oil lubrication guarantees the working of bearing in the optimal temperature
The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry.
The slurry pump is of good hydraulic performance, high efficiency and low abrasion and corrosion.
The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.
Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed
|
Type |
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff. n % |
Matching Motor Power kw |
Speed n r/min |
Capacity Q m3/h |
Head H m |
Eff. n % |
Matching Motor Power kw |
| 150ZBG(P)-740 | 980 | 600.0 | 90.0 | 70.0 | 280~355 | 740 | 453.1 | 51.3 | 67.9 | 132 -160 |
| 720.0 | 86.3 | 72.8 | 543.7 | 49.2 | 70.5 | |||||
| 345.7 | 87.2 | 56.9 | 261.1 | 49.7 | 55.2 | |||||
| 150ZBG(P)-740A | 980 | 576.2 | 83.0 | 69.7 | 250~315 | 740 | 435.1 | 47.3 | 67.6 | 110~160 |
| 691.4 | 79.6 | 72.5 | 522.1 | 45.4 | 70.3 | |||||
| 330.8 | 79.8 | 56.6 | 249.8 | 45.5 | 54.9 | |||||
| 150ZBG(P)-740B | 980 | 551.4 | 76.0 | 69.4 | 220~280 | 740 | 416.3 | 43.3 | 67.3 | 90-110 |
| 661.6 | 72.9 | 72.1 | 499.6 | 41.6 | 70.0 | |||||
| 315.2 | 72.5 | 56.3 | 238.0 | 41.3 | 54.6 | |||||
| 150ZBG(P)-740C | 980 | 525.4 | 69.0 | 69.0 | 185~ 220 | 740 | 396.7 | 39.3 | 66.9 | 75 -110 |
| 630.4 | 66.2 | 71.8 | 476.0 | 37.7 | 69.6 |
