Industrial 800kw 3300.0m3/H High Head Submersible Mud Pump Low Abrasion 450ZBD-1050

1 Set
MOQ
Negotiable
Price
Industrial 800kw 3300.0m3/H High Head Submersible Mud Pump Low Abrasion 450ZBD-1050
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Submersible Mud Pump
Feature: High Efficiency,Long Life
Application: Sewage,Submersible
Standard Or Nonstandard: Standard
Warranty: 12 Months
Usage: Water,slurry,chemical Industry,pumping Of Water
Material: Cast Iron
High Light:

3300.0m3/h submersible mud pump

,

800kw submersible mud pump

,

800kw industrial mud pump
Basic Infomation
Place of Origin: China
Brand Name: TM
Certification: ISO9001:2000
Model Number: 450ZBD-1050
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 200 sets per month
Product Description

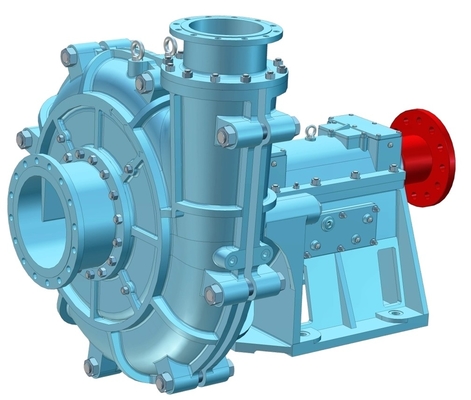

450ZBD-1050 Slag Slurry Pump

  • the optimization of methods and CAD, CFD and CAPP in pump-design, the slurry pump is of good hydraulic performance, high efficiency and low abrasion and corrosion.
  • It is engineered in ways of direct connection drive, thus resulting in enhanced efficiency. According to customers’ requirement the belt-convey can also be utilized.
  • Besides the wide passage, non-clogging and anti-corrosion of vapor is also superb.
  • The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry.
  • The adoption of metric bearing with oil lubrication, reasonable structure of cooling system with oil lubrication guarantees the working of bearing in the optimal temperature.
  • The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.
  • The reliable design grants the tremendous improvement in MTBF.



Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed



 Type



Speed

n

r/min



Capacity

Q

m3/h



Head

H

m



Eff.

n

%



Matching Motor Power

kw



Speed

n

r/min



Capacity

Q

m3/h



Head

H

m



Eff.

n

%



Matching Motor Power

kw
    1980.0 67.1 72.2     1644.4 46.3 71.1
450ZBD-1050 590 3300.0 62.0 84.0 800 -1120 490 2740.7 42.8 82.7 500~ 630
    3960.0 58.2 84.8     3288.8 40.1 83.5
    1881.8 60.6 71.9     1562.8 41.8 70.8
450ZBD-1050A 590 3136.3 56.0 83.6 800 - 1000 490 2604.7 38.6 82.3 450~ 560
    3763.5 52.6 84.4     3125.6 36.3 83.1
    1778.1 54.1 71.6     1476.7 37.3 70.4
450ZBD-1050B 590 2963.5 50.0 83.2 630-800 490 2461.2 34.5 81.9 355~ 450
    3556.2 46.9 84.0     2953.4 32.4 82.7
    1686.8 48.7 71.2     1400.9 33.6 70.1
450ZBD-1050C 590 2811.4 45.0 82.9 560-710 490 2334.9 31.0 81.6 315~ 400
    3373.7 42.2 83.7     2801.9 29.1 82.3


Customers offer the following raw data, Our professionals will choose the right pump for you, and present the technical documents as the basis for ordering price.

  • Media case: flow,head or vertical height, outlet pressure,the length of the transmission pipe^ component and nature of the serous fluid,weight concentration,ore density,median size,the number of elbow, working temperature.
  • Driven form: according the driven form the driven form table of ZBG,ZBD,ZBQ series slurry pump to choose.(DC,DCD,DCZ,CRZ,CLZ,CR,CRD,CL,CLD,ZVZ,ZV,ZVD,CV,CVD,AZV Etc.)
  • Seal form: packing seal and impeller seal combined with packing seal and mechanical seal.
  • Supporting motor: type (as Y.YPT. YJS.YKK.YRKK Etc.),main technical parameters(voltage,insulation levels,level of security Etc.);manufacturer.
  • Other special requirements: the direction of pump outlet,spare parts,Special tools.
  • The related structure and technical data are subject to change without notice because of technical progress and the revising for domestic and international standards.Please ask for formal outline drawing from our company after placing an order.

FAQ

  1. Q: What’ the MOQ?

           A: Trial sample is ok.



  1. Q: Are you factory or trading company?

    A: We are a manufacturer.



  1. Q: Can you accept to use our logo?

     A: Yes, we can do OEM for you.



  1. Q: How can I get the pump?

         A: Usually we suggest express for samples, if the volume reaches 1m3,the seaway will be better.



  1. Q: What’s the warranty period?

     A: 1 year
